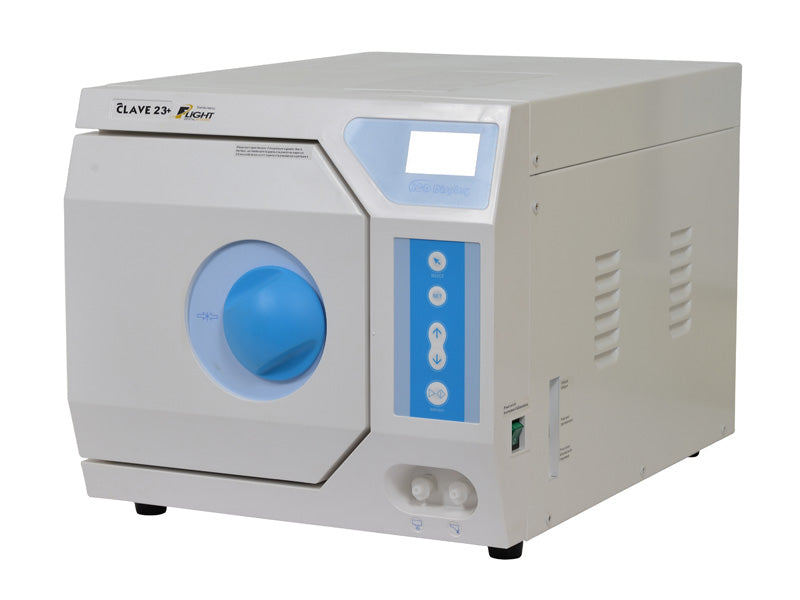

Flight Autoclave Clave23+ with Compressor, Autoclave Sterilizer Machine

  • $7,177.00
    Unit price per
Shipping calculated at checkout.


Please click here to view our autoclave brochure  Autoclave Brochure



The Clave23+ Chamber Autoclave is a Class N Steam Sterilizer that utilizes the most state-of-the-art technology in steam pulsing sterilization. The Clave23+ uses a pressure displacement technology that allows a more complete removal of air inside the chamber before the sterilization cycle begins . In addition, with the steam injection pressure pulsing technology it reduces maintenance, improves sterilization effectiveness and increases speed of the sterilization process.

The Clave23+ uses the highest quality components and each unit is stress tested to ensure the quality and reliability of the machine. The Clave23+ is compact and efficient sterilizer is suitable for any dental, veterinary, podiatry, chiropodist, tattoo, medical and beauty office.

As the name suggests this is the largest chamber autoclave offered by Flight Dental Systems at 23L in capacity.

The Clave23+ also has an air assisted drying technology which integrates a compressor for faster drying.

KEY FEATURES:

  • Class N Steam Sterilizer with air assisted Drying Technology
  • Ultra-fast Closed door drying with air assisted drying
  • 5 Programmed Sterilizations Cycles: Solid/Unwrapped, Wrapped, Liquid, Textile, Prions
  • Solid Steel Construction
  • Steam Injected Pressure Pulsing Sterilizer
  • Independent Steam Generator for positive pressure displacement
  • Easy to repair – Quality Parts Made in Europe
  • Optional Printer

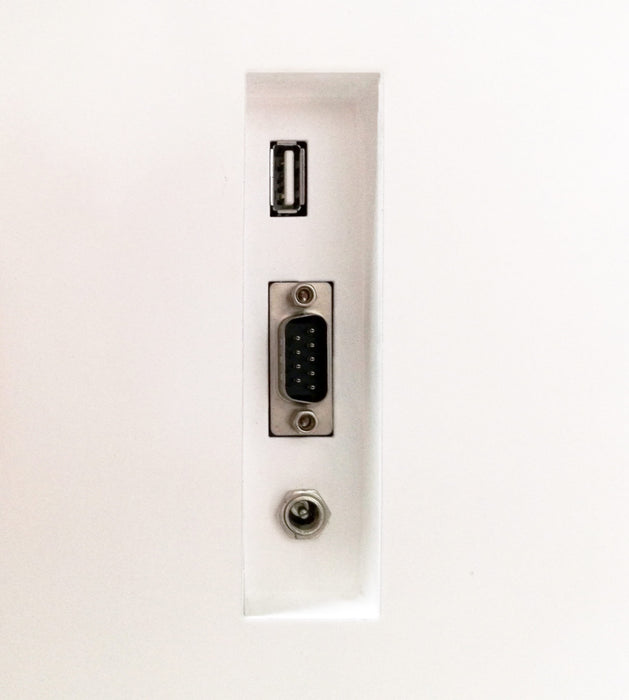

  • USB Port for Recording Cycles
  • Double Door Protection System – Prevents door from opening during Cycles
  • Pressure Safety valve
  • Fast Sterilization Cycles Unwrapped: 4min, Wrapped: 10 min, Rubber/Textiles: 10min
  • Larger Chamber compared to Statim with Similar Sterilization Time
  • 2 Year Parts Warranty

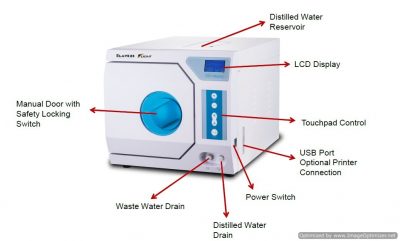

Distilled Water Reservoir

  • Easily accessible and easy to fill.
  • Water Level Sensor
  • Capacity to run 5-6 Cycles Before Adding water

Specifications

Model: Clave23
Chamber Size 23L (9.72”x 23.6”)

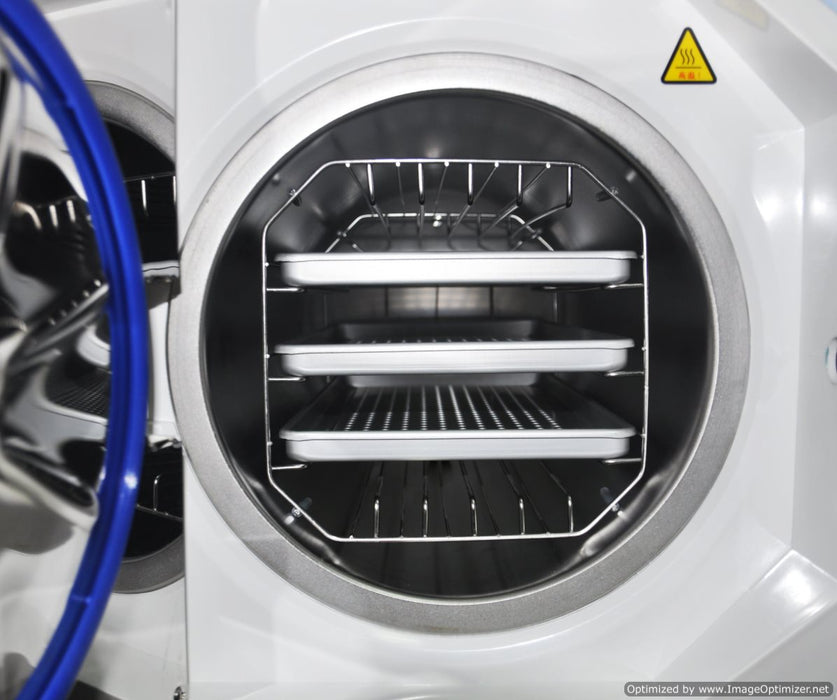

Number of Trays 4
Voltage 110V 50/60Hz
Power (W) 2200
Overall Dimensions (WxHxD) 18.9” x 18.3” x 27.6”



Frequency Maintenance Required
Daily Clean Door Seal



Clean the External Surface

Weekly Clean Distilled Water Reservoir



Clean Sterilization Chamber

Monthly Clean Filter inside Chamber and Tank
Every 3/6 Months Replace Door Seal
Every Year Replace Silicone Tubing, filters and door Seal
Every 2 Years Replace Battery on Main PCB that Controls Timer

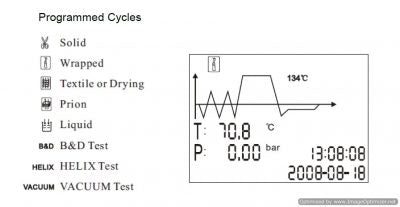

Programmed Cycle

Solid/Unwrapped: 4 Min Sterilization @ 134C, 20 min Sterilization @121C



Total Time: 45 min including Drying

Wrapped: 10 Min @134C

30 min @ 121C

Total Time: 50 min Including Drying

Liquid/Textile/Rubbers: 10 min @ 134C, 30 min @ 121C

Total Time: 65 min including Drying
